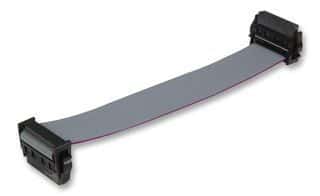

32-position, 2-row ribbon cable assembly featuring female IDC receptacle connectors on both ends. This unshielded cable assembly utilizes a 1.27mm connector pitch and a 0.635mm cable pitch, with 30AWG conductors. Constructed with copper alloy contacts plated in gold, it supports a current rating of 2A and operates within a temperature range of -55°C to 125°C. The grey cable measures 0.1m in length and is RoHS compliant.
Current Rating2A
Quick Jump:
Technical Specifications
Harting 33152430100010 technical specifications.
General
Cable Pitch
0.635mm
Color
Grey
Connector Pitch
1.27mm
Connector Type A
IDC, Receptacle
Connector Type B
IDC, Receptacle
Contact Material
Copper Alloy, Gold
Current Rating
2A
Gender
Female to Female
Length
0.1m
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Conductors
32
Number of Contacts
32
Number of Cores
32
Number of Positions
32
Number of Rows
2
Pitch
1.27mm
Primary Type
CABLE ASSEMBLY
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
har-flex
Shielding
Unshielded
Termination
IDC
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Harting 33152430100010 Datasheet
Download the complete datasheet for Harting 33152430100010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
