20-position, 2-row unshrouded header with a 2.54mm pitch. Features straight, through-hole mounting and solder termination. Male pin contacts are made of bronze and brass with tin plating, rated for 3A current and 750V DC. Operating temperature range is -40°C to 105°C, with a black polyester housing.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M20-9971046 technical specifications.
General
| Color | Black |
| Contact Material | Bronze, Brass |
| Contact Mating Length | 0.335inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 5.08mm |
| Gender | Male |
| Housing Color | Black |
| Length | 25.4mm |
| Material | Polyester |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 300 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | M20 |
| Termination | Solder |
| DC Rated Voltage | 750V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M20-9971046 Datasheet
Download the complete datasheet for Harwin M20-9971046 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

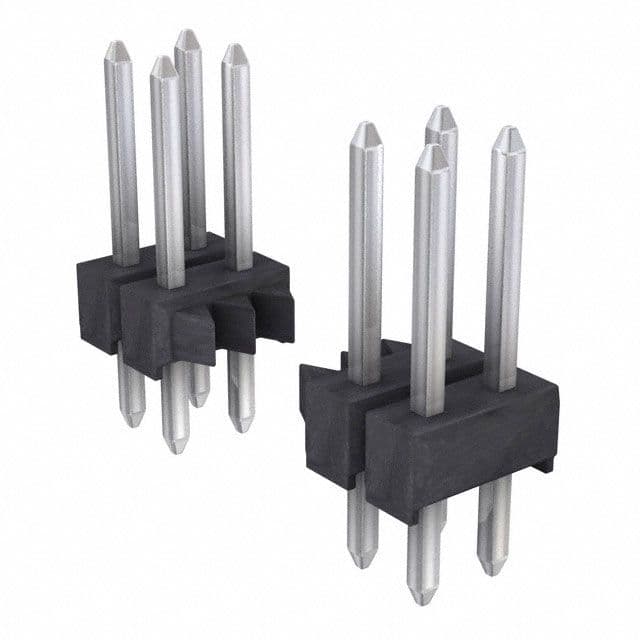

Product Images
