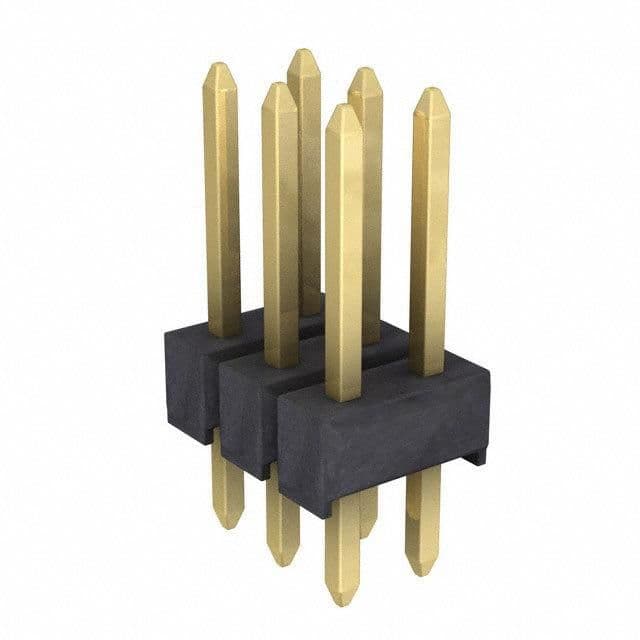

Unshrouded header with 6 positions and 2 rows, featuring a 2.54mm pitch. Male pin contacts made of brass/bronze with gold plating ensure a 3A current rating. Straight, top-entry orientation with solder termination for through-hole mounting. Nylon insulation in black, with a UL94 V-0 flammability rating and a maximum operating temperature of 105°C.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M20-9980345 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Brass, Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5.08mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Length
7.62mm
Mated Stacking Heights
16.54mm
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
1000
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M20
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Harwin M20-9980345 Datasheet
Download the complete datasheet for Harwin M20-9980345 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
