Unshrouded header with 6 positions and 2 rows, featuring a 2.54mm pitch. Male pin contacts made from brass and bronze with tin plating offer a 3A current rating. Straight, top-entry, through-hole mounting with solder termination. Nylon insulation in black, with a UL94 V-0 flammability rating and a maximum operating temperature of 105°C.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M20-9980346 technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Brass, Bronze
Contact Plating
Tin
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5.08mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Length
7.62mm
Mated Stacking Heights
16.54mm
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
1000
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M20
Termination
Solder
DC Rated Voltage
750V
Compliance
RoHS
Compliant
Datasheet
Harwin M20-9980346 Datasheet
Download the complete datasheet for Harwin M20-9980346 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

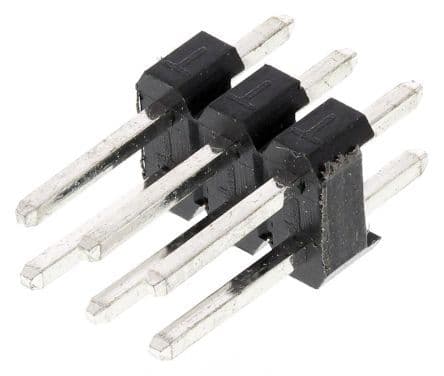

Product Images
