12-position, 2-row unshrouded header with a 2.54mm pitch. Features male pin contacts with a square shape and tin plating over brass/bronze for mating. Rated for 3A current and operates within a -40°C to 105°C temperature range. Straight, through-hole mounting with solder termination and a nylon housing.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M20-9980646 technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Brass, Bronze
Contact Plating
Tin
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5.08mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Length
15.24mm
Mated Stacking Heights
16.54mm
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
12
Number of Positions
12
Number of Rows
2
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M20
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Harwin M20-9980646 Datasheet
Download the complete datasheet for Harwin M20-9980646 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

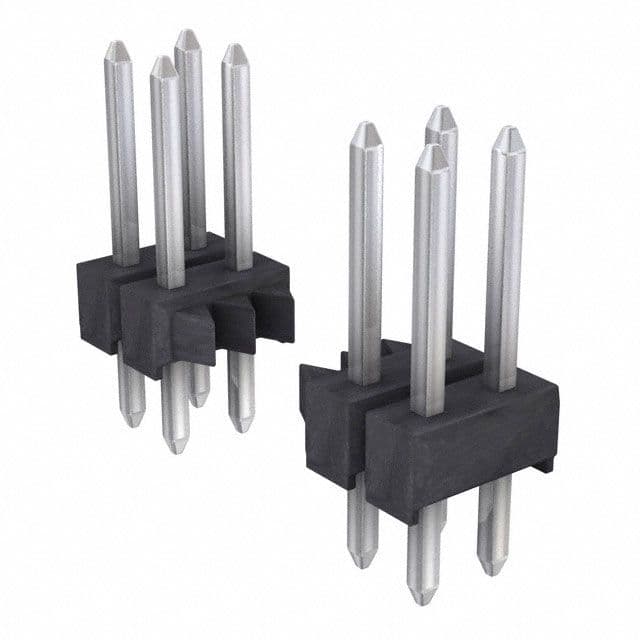

Product Images
