Unshrouded header, male pin contact type, 6 positions, 2 rows, 2mm pitch, straight orientation, surface mount termination. Features bronze contact material with gold plating, 1A max current rating, and a 0.138-inch contact mating length. Operates within a -40°C to 105°C temperature range. Housing color is black, with overall dimensions of 6mm length and 4mm depth. Supplied in bulk/loose packaging with 400 units per rail/tube.
MountingSurface Mount
Quick Jump:
Technical Specifications
Harwin M22-5320305 technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Mating Length
0.138inch
Contact Plating
Gold
Contact Type
Male Pin
Depth
4mm
Gender
Male
Housing Color
Black
Length
6mm
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
400
Packaging
Rail/Tube
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.079inch
Series
M22
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Harwin M22-5320305 Datasheet
Download the complete datasheet for Harwin M22-5320305 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

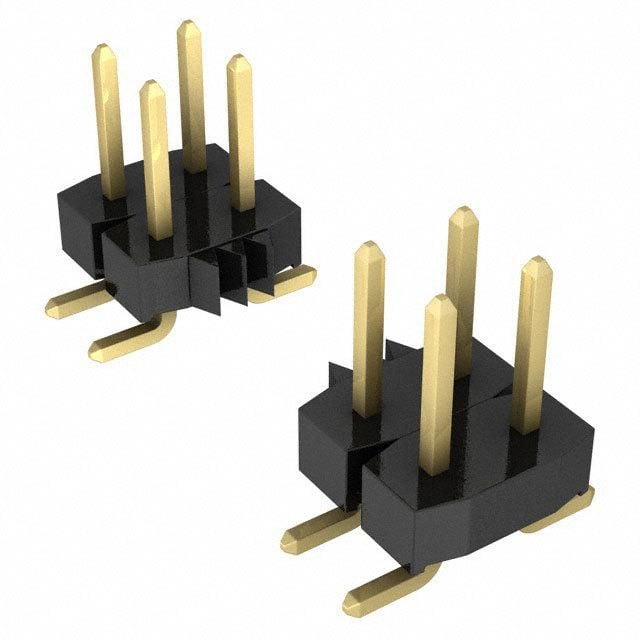

Product Images
