Technical Specifications
Harwin M40-1201500 technical specifications.
General
| Current Rating | 1A |
| Depth | 5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Length | 18mm |
| Material | Thermoplastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | PCB |
| Number of Contacts | 30 |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M40 |
| Termination | Crimp |
| Voltage Rating (AC) | 50V |
| Width | 4.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M40-1201500 Datasheet
Download the complete datasheet for Harwin M40-1201500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

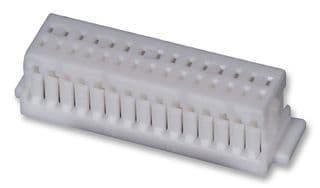

Product Images
