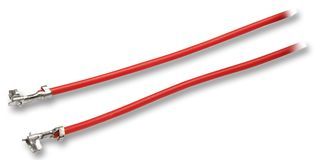

Red PVC cable assembly, 0.15m (5.9 inches) in length, featuring 28AWG wire with a single conductor. This assembly utilizes female crimp connectors on both ends, with bronze contacts plated in tin. Rated for 1A current and 50V AC, it operates between -25°C and 85°C. RoHS compliant and supplied in bulk packaging.
Package100
Current Rating1A
MountingCable
Quick Jump:
Technical Specifications
Harwin M40-9040099 technical specifications.
General
Package/Case
100
Color
Red
Connector Type A
Crimp
Connector Type B
Crimp
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Gender
Female
Jacket Material
PVC
Lead Length
150mm
Length
5.9inch
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Cable
Number of Conductors
1
Number of Rows
1
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating (AC)
50V
Wire/Cable Gauge
28AWG
Wire/Cable Type
PVC
Compliance
RoHS
Compliant
Datasheet
Harwin M40-9040099 Datasheet
Download the complete datasheet for Harwin M40-9040099 to view detailed technical specifications.
