Technical Specifications

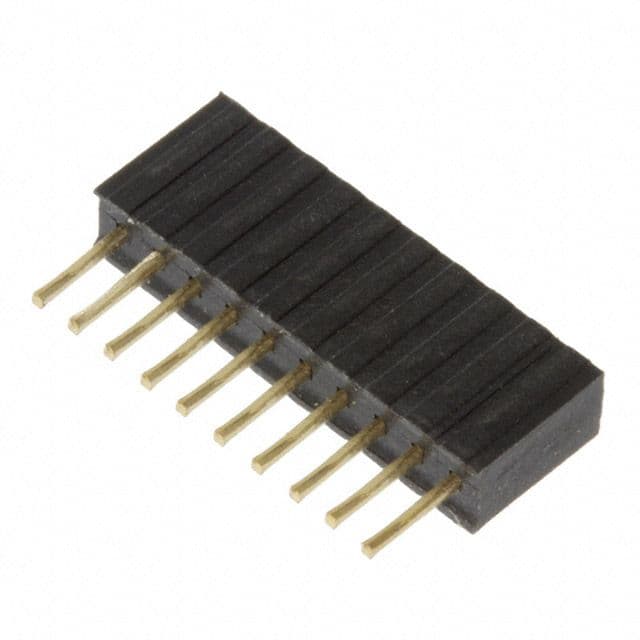

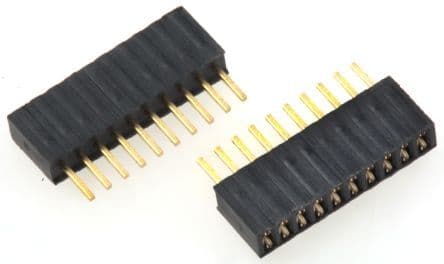

Harwin M52-5001045 technical specifications.
General
| Package/Case | SIL |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Copper, Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 44 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M52 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M52-5001045 Datasheet
Download the complete datasheet for Harwin M52-5001045 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
