Female, straight, 2-position, 1-row interconnection device with a 2.54mm pitch. Features bronze contacts with tin plating, a black housing, and a maximum current rating of 3A at 250V. Operates within a temperature range of -40°C to 85°C and boasts a UL94 V-0 flammability rating. This RoHS compliant component is supplied in bulk packaging.
Voltage Rating250V
Quick Jump:
Technical Specifications
Harwin M7567-46 technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Tin
Depth
2.3mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Length
5mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
2500
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M75
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Harwin M7567-46 Datasheet
Download the complete datasheet for Harwin M7567-46 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

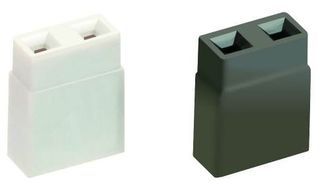

Product Images
