Technical Specifications
Harwin M7583-05 technical specifications.
General
Color
Blue
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1A
Depth
2.4mm
Flammability Rating
UL94 V-0
Height
0.236inch
Housing Color
Blue
Length
5mm
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
5000
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
M75
Compliance
RoHS
Compliant
Datasheet
Harwin M7583-05 Datasheet
Download the complete datasheet for Harwin M7583-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

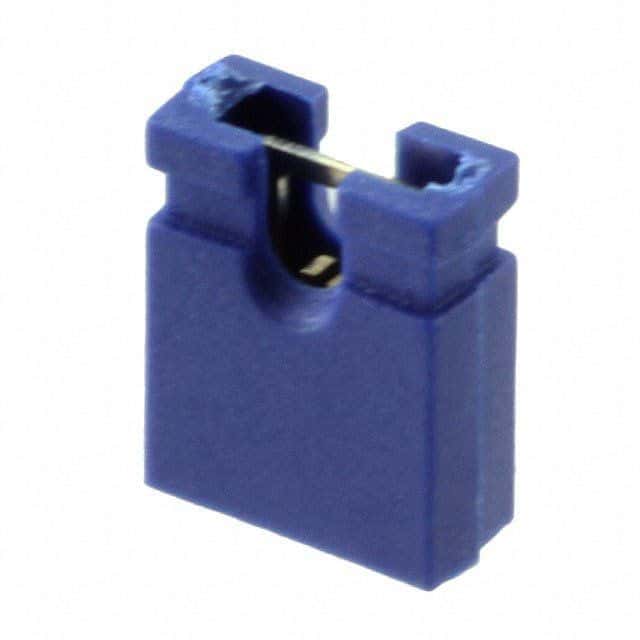

Product Images
