10-position, 2-row, 2mm pitch right-angle male pin header with gold-plated brass contacts. Features a 3A current rating and 800V voltage rating, with UL94 V-0 flammability. Surface mount termination with a glass-filled, black insulation material. RoHS compliant.
Voltage Rating800V
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Harwin M80-6651042 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Glass |
| Mount | Surface Mount |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Datamate L-Tek |
| Termination | Solder |
| Voltage Rating | 800V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M80-6651042 Datasheet
Download the complete datasheet for Harwin M80-6651042 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

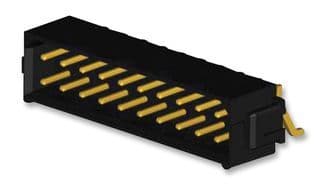

Product Images
