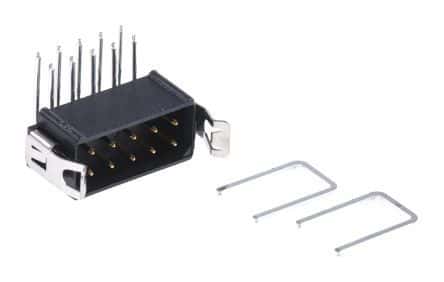

10-position, 2-row shrouded header with male pin contacts and 2mm pitch. Features right-angle, side-entry mounting with through-hole termination for solder connection. Constructed from black Nylon with gold-plated bronze contacts, offering a 3A current rating and 120V voltage rating. UL94 V-0 flammability rating and RoHS compliance.
Voltage Rating120V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M80-8511042 technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Bronze, Gold
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
3A
Flammability Rating
UL94 V-0
Gender
Male
Material
Nylon
Mount
Through Hole
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Right Angle
Package Quantity
18
Packaging
Rail/Tube
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.079inch
Series
M80
Termination
Solder
Voltage Rating
120V
Compliance
RoHS
Compliant
Datasheet
Harwin M80-8511042 Datasheet
Download the complete datasheet for Harwin M80-8511042 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
