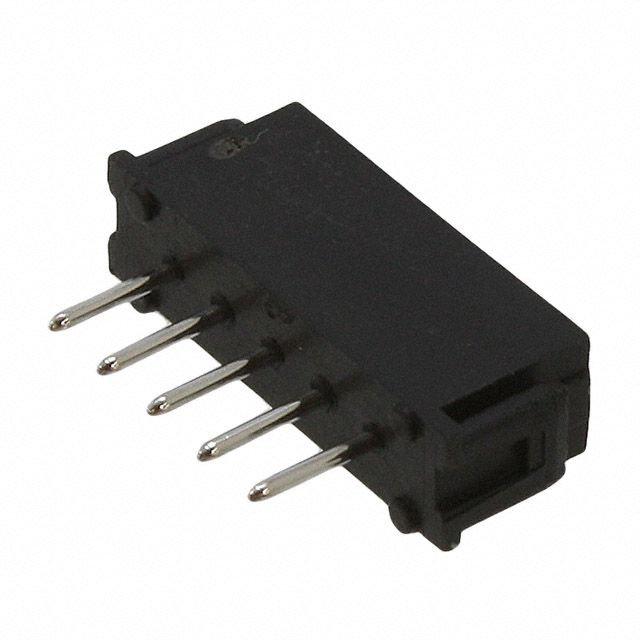

5-position, 1-row shrouded header with 2mm pitch. Features male pin contacts with gold mating finish and tin/gold/lead plating on bronze, copper, and brass material. Rated for 3A current and 800V voltage, with a 120V working voltage. Nylon insulation in black, with a SIL package and straight, through-hole mounting. Operates from -55°C to 125°C, with 500 mating cycles and UL94 V-0 flammability.
PackageSIL
Voltage Rating800V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M80-8520542 technical specifications.
General
| Package/Case | SIL |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Bronze, Copper, Brass |
| Contact Plating | Tin, Gold, Lead |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Lead Pitch | 2mm |
| Mated Stacking Heights | 13.46mm |
| Material | Glass, Thermoplastic |
| Mating Cycles | 500 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Datamate L-Tek |
| Termination | Solder |
| Voltage Rating | 800V |
| Wire/Cable Gauge | 22AWG |
| Working Voltage | 120V |
Compliance
| RoHS | Compliant |
