Technical Specifications
Harwin S1741-46R technical specifications.
General
Contact Plating
Tin
Contact Type
Signal
Current Rating
6A
Depth
3.1mm
Gender
Female
Height
2.5mm
Length
5.4mm
Material
Bronze, Stainless Steel
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Solder
Orientation
Straight
Package Quantity
2500
Packaging
Tape and Reel
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EZ BoardWare
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Harwin S1741-46R Datasheet
Download the complete datasheet for Harwin S1741-46R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

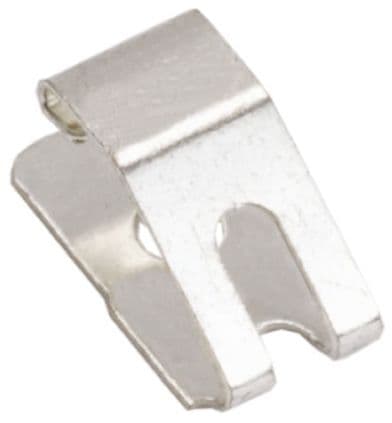

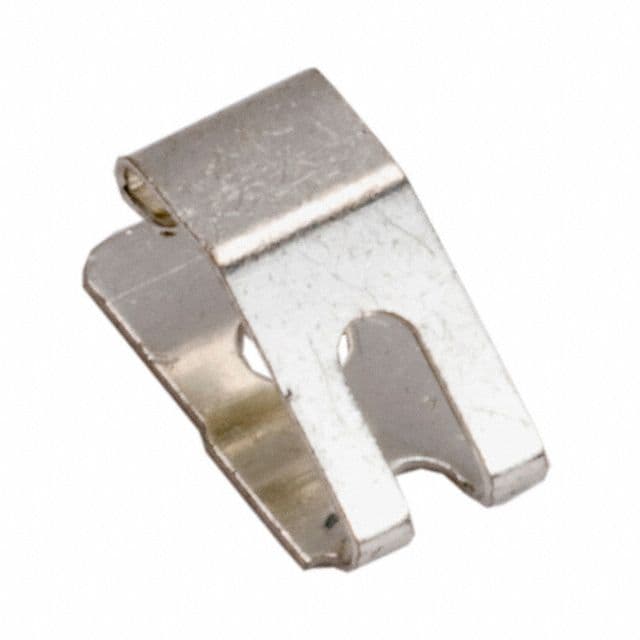

Product Images
