The Harwin S8131-46R is a silver plated rectangular connector with a female gender and a 1.8mm inside diameter. It measures 3.55mm in height, 8mm in width, and 10mm in length. The connector is made of bronze, tin, and copper materials and is plated with tin. It is designed for solder mount and is available in a tape and reel packaging with 800 pieces per package. The connector is not Reach SVHC compliant.
MountingSolder
Quick Jump:
Technical Specifications
Harwin S8131-46R technical specifications.
General
| Color | Silver, Natural |
| Depth | 3.55mm |
| Gender | Female |
| Height | 3.55mm |
| Inside Diameter | 1.8mm |
| Length | 10mm |
| Material | Bronze, Tin, Copper |
| Mount | Solder |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Reach SVHC Compliant | No |
| Series | EZ BoardWare |
| Width | 8mm |
| Wire/Cable Color | Grey |
| Wire/Cable Diameter | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Harwin S8131-46R Datasheet
Download the complete datasheet for Harwin S8131-46R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

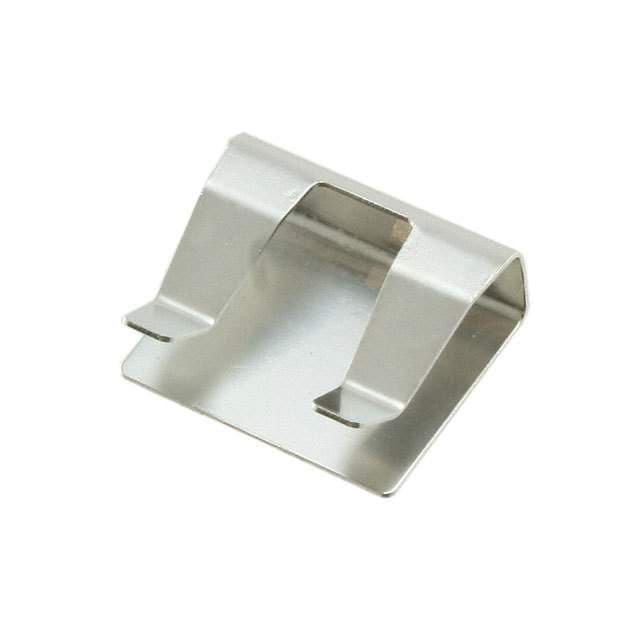

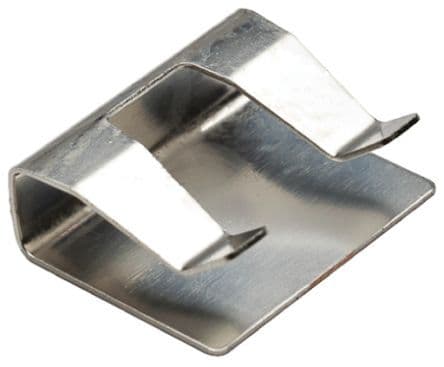

Product Images
