5-position, fully insulated wire connector for cable management. Features brass contacts with tin plating, rated for 24A and 450V. Constructed from UL94 V-0 rated polycarbonate in blue and clear, with a maximum operating temperature of 105°C. Accommodates wire gauges from 12AWG to 22AWG via IDC termination.
Voltage Rating450V
Current Rating24A
MountingCable
Quick Jump:
Technical Specifications
Hellermanntyton 148-90003 technical specifications.
General
Color
Blue, Clear
Contact Material
Brass
Contact Plating
Tin
Current Rating
24A
Flammability Rating
UL94 V-0
Insulation
Fully Insulated
Insulation Color
Blue
Insulation Material
PC
Material
PC
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Contacts
5
Number of Positions
5
Number of Ways
5
Number of Wire Entries
5
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
HelaCon Plus
Termination
IDC
Voltage Rating
450V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Compliant
Datasheet
Hellermanntyton 148-90003 Datasheet
Download the complete datasheet for Hellermanntyton 148-90003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

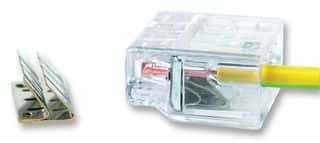

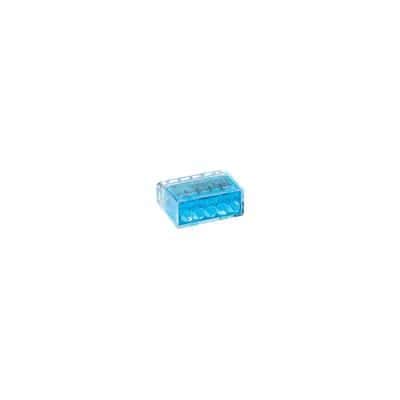

Product Images
