Voltage Rating30V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose BM20B(0.8)-34DP-0.4V(53) technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
300mA
Mated Stacking Heights
0.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Mount
Surface Mount
Number of Positions
34
Number of Rows
2
Package Quantity
1000
Packaging
Tape and Reel
Pitch
0.4mm
Series
BM20
Stack Height
0.8mm
Termination
SMD/SMT
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Hirose BM20B(0.8)-34DP-0.4V(53) Datasheet
Download the complete datasheet for Hirose BM20B(0.8)-34DP-0.4V(53) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

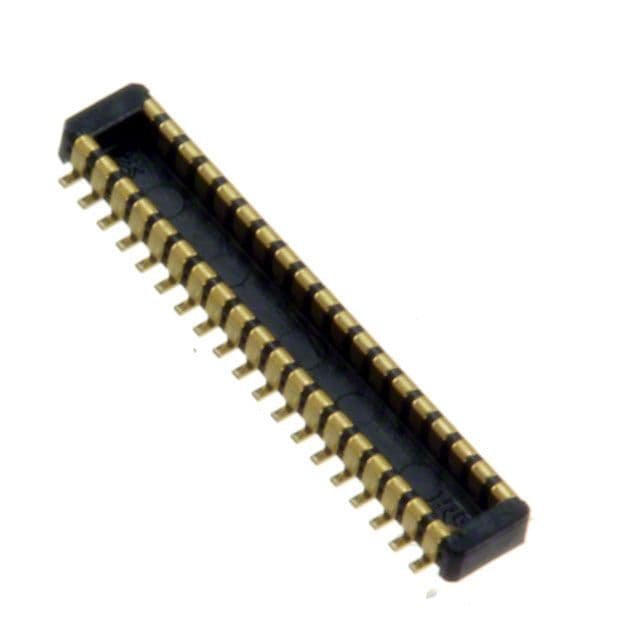

Product Images
