14-position, 2-row, 2mm pitch wire housing for crimp termination. Features female socket contacts made of tin-plated copper, rated for 2A and 250V AC/DC. Straight, cable mount receptacle with a black housing, suitable for wire gauges 26-22AWG. Operating temperature range of -30°C to 85°C, with a UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating2A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
Hirose DF11-14DS-2C technical specifications.
General
Color
Black
Contact Material
Copper
Contact Pitch
2mm
Contact Plating
Tin
Contact Type
Female Socket
Contact Voltage Rating (AC)
250V
Contact Voltage Rating (DC)
250V
Current Rating
2A
Depth
7.3mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Lead Pitch
2mm
Length
16mm
Mating Cycles
30
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Panel
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2mm
Series
DF11
Termination
Crimp
Voltage Rating
250V
Voltage Rating (AC)
30V
Width
5mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF11-14DS-2C Datasheet
Download the complete datasheet for Hirose DF11-14DS-2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

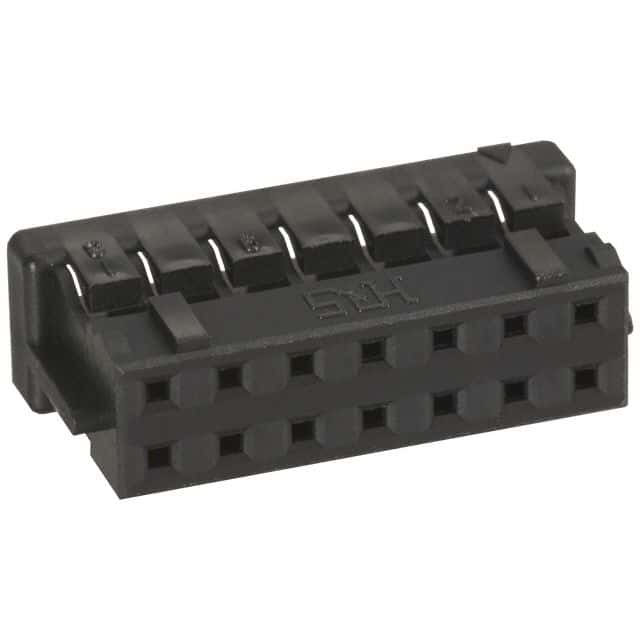

Product Images
