16-position, 2-row straight wire housing with 2mm pitch for crimp termination. Features male pin contacts and a 2A current rating, supporting wire gauges from 26AWG to 22AWG. Designed for panel mounting with snap-in retention, this black, lead-free, and RoHS-compliant component operates within a temperature range of -30°C to 85°C and a voltage rating of 250V.
Voltage Rating250V
Current Rating2A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Hirose DF11-16DEP-2C technical specifications.
General
Color
Black
Contact Gender
Male
Contact Type
Male Pin
Current Rating
2A
Depth
13mm
Gender
Female
Height
6.9mm
Housing Color
Black
Lead Free
Lead Free
Length
23mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
16
Number of Positions
16
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
2mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
DF11
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF11-16DEP-2C Datasheet
Download the complete datasheet for Hirose DF11-16DEP-2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

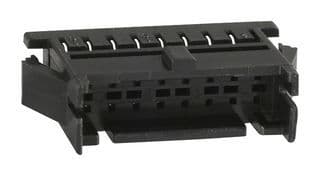

Product Images
