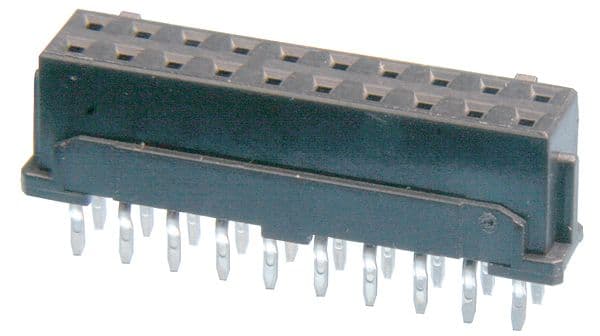

20-position, 2-row shrouded header receptacle with 2mm pitch. Features straight, through-hole mounting and solder termination. Contacts are female socket type, square shape, made from copper alloy with tin plating, rated for 2A and 250V. Nylon insulation in black housing, with a flammability rating of UL94 V-0. Operating temperature range is -30°C to 85°C.
Voltage Rating250V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF11-20DS-2DSA(05) technical specifications.
General
Contact Finish - Mating
TIN
Contact Gender
Female
Contact Material
Copper, Brass, Bronze, Tin
Contact Plating
Tin
Contact Shape
Square
Contact Type
Female Socket
Current Rating
2A
Depth
5mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Length
22mm
Mated Stacking Heights
8.45mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Through Hole
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF11
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Hirose DF11-20DS-2DSA(05) Datasheet
Download the complete datasheet for Hirose DF11-20DS-2DSA(05) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
