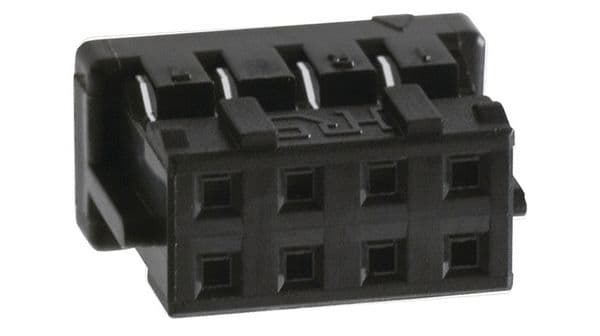

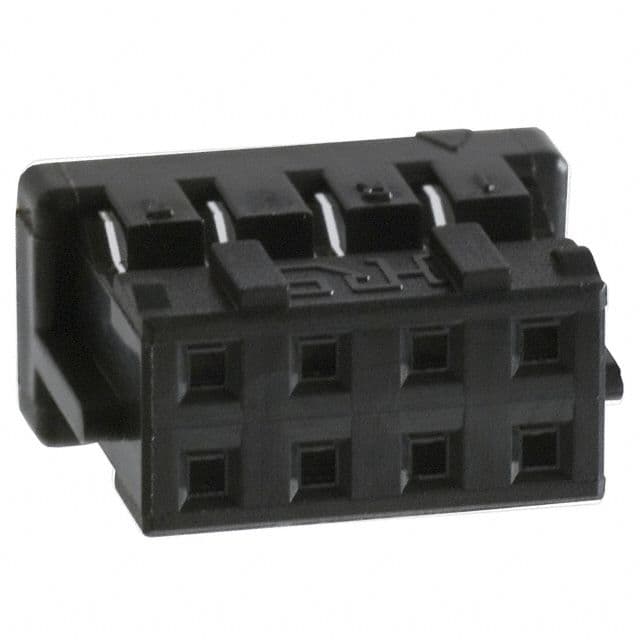

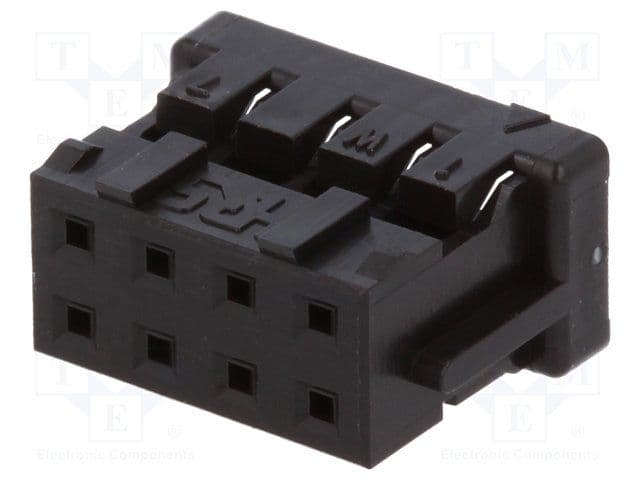

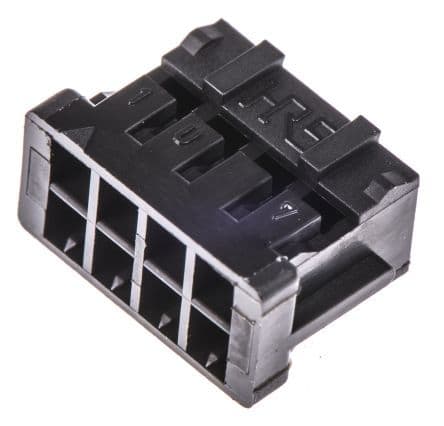

8-contact, 2-row female receptacle connector with a 2mm pitch. Features a straight orientation, crimp termination, and a locking mechanism. Rated for 250V AC/DC and 2A current. Operates within a temperature range of -30°C to 85°C. Black insulator housing, tin contact plating, and lead-free construction. Suitable for free hanging or panel mounting applications.
Voltage Rating250V
Current Rating2A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
Hirose DF11-8DS-2C technical specifications.
General
Color
Black
Contact Gender
Female
Contact Pitch
2mm
Contact Plating
Tin
Contact Type
Female Socket
Contact Voltage Rating (AC)
250V
Contact Voltage Rating (DC)
250V
Current Rating
2A
Depth
7.3mm
Gender
Receptacle
Height
5mm
Housing Color
Black
Lead Free
Lead Free
Length
10mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Panel
Number of Contacts
8
Number of Positions
8
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF11
Termination
Crimp
Voltage Rating
250V
Width
5mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF11-8DS-2C Datasheet
Download the complete datasheet for Hirose DF11-8DS-2C to view detailed technical specifications.
