12-position, 2-row shrouded header with straight, surface-mount termination. Features male pin contacts made of copper or brass with tin or gold plating, rated for 1A current and 100V voltage. Operates within a -30°C to 85°C temperature range. Housing available in black or beige, with a 2mm pitch and 6.2mm depth. Packaged in tape and reel for 500 units.
Voltage Rating100V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF11C-12DP-2V(57) technical specifications.
General
Color
Black, Beige
Contact Gender
Male
Contact Material
Copper, Brass
Contact Plating
Tin, Gold
Contact Type
Male Pin
Current Rating
1A
Depth
6.2mm
Gender
Male
Housing Color
Beige
Lead Free
Lead Free
Length
19.5mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Contacts
12
Number of Positions
12
Number of Rows
2
Orientation
Straight
Package Quantity
500
Packaging
Tape and Reel
Pitch
2mm
RoHS Compliant
Yes
Row Spacing
0.079inch
Series
DF11
Termination
Solder
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Hirose DF11C-12DP-2V(57) Datasheet
Download the complete datasheet for Hirose DF11C-12DP-2V(57) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

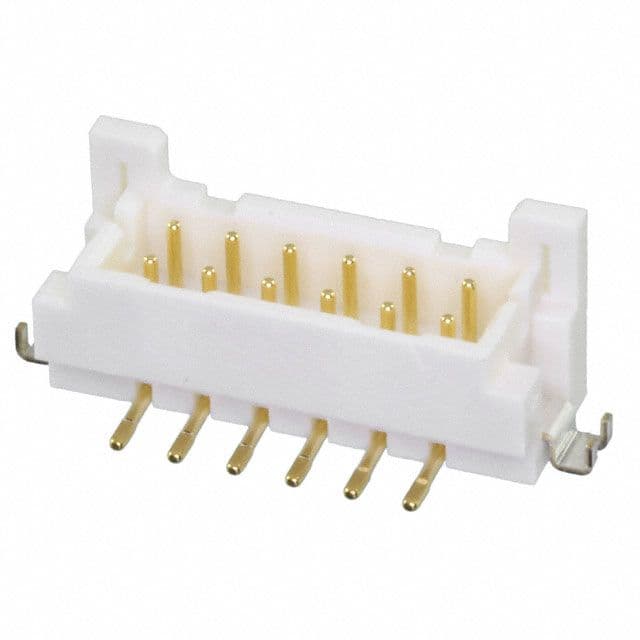

Product Images
