10-position, single-row wire housing for 1.25mm pitch connectors. Features female socket contacts with a 1A current rating and 150V voltage rating. Designed for straight, cable-mount termination with a 26-30AWG wire gauge. Operating temperature range from -35°C to 85°C. Lead-free and RoHS compliant, this beige housing is suitable for free-hanging applications.
Voltage Rating150V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF13-10S-1.25C technical specifications.
General
Color
Beige
Contact Gender
Female
Contact Type
Female Socket
Current Rating
1A
Depth
4mm
Gender
Female
Height
3.2mm
Housing Color
Beige
Lead Free
Lead Free
Length
14.15mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
150V
Mount
Free Hanging, Cable
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
1.25mm
RoHS Compliant
Yes
Series
DF13
Termination
Crimp
Voltage Rating
150V
Width
3.2mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF13-10S-1.25C Datasheet
Download the complete datasheet for Hirose DF13-10S-1.25C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

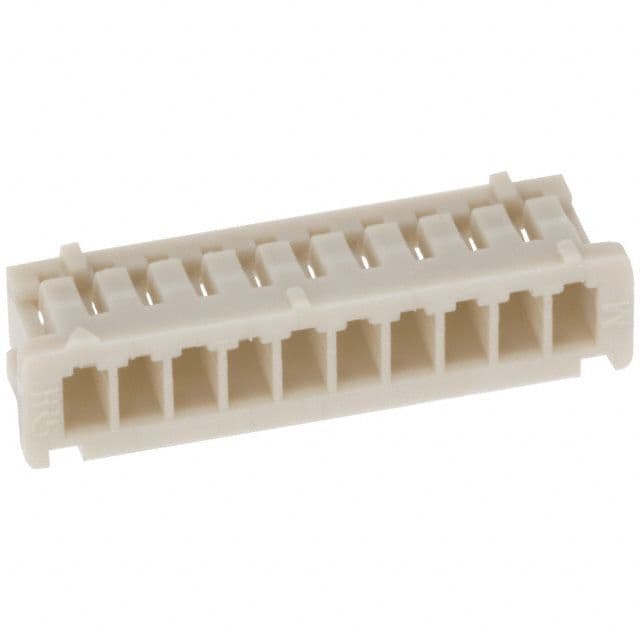

Product Images
