11-position, straight, male connector housing with a 1.25mm pitch. Features female socket contacts for crimp termination, supporting wire gauges from 26 to 30 AWG. Rated for 1A current and 150V AC, operating between -35°C and 85°C. This beige, lead-free, RoHS compliant wire housing is designed for cable mounting and free-hanging applications.
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF13-11S-1.25C technical specifications.
General
Color
Beige
Contact Gender
Female
Contact Type
Female Socket
Current Rating
1A
Depth
4mm
Gender
Male
Height
3.2mm
Housing Color
Beige
Lead Free
Lead Free
Length
15.4mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
150V
Mount
Free Hanging, Cable
Number of Contacts
11
Number of Positions
11
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
1.25mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
DF13
Termination
Crimp
Voltage Rating (AC)
150V
Width
3.2mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF13-11S-1.25C Datasheet
Download the complete datasheet for Hirose DF13-11S-1.25C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

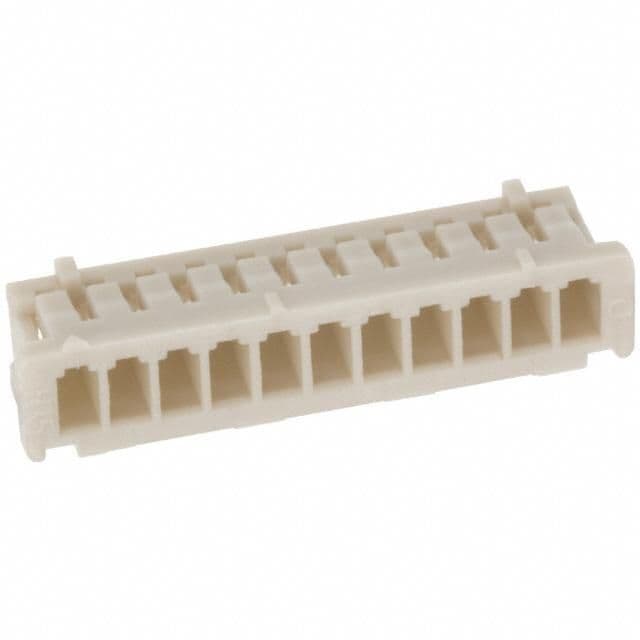

Product Images
