4-position, 1-row, straight, cable mount wire housing receptacle with a 1.25mm contact pitch. Features female socket contacts made of bronze, rated for 1A current and 150V AC. Constructed from beige polyamide material, this connector operates between -35°C and 85°C and is RoHS compliant. Designed for crimp termination, it accommodates wire gauges from 26AWG to 30AWG.
Voltage Rating150V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF13-4S-1.25C technical specifications.
General
Color
Beige
Contact Gender
Female
Contact Material
Bronze
Contact Pitch
1.25mm
Contact Type
Female Socket
Contact Voltage Rating (AC)
150V
Current Rating
1A
Depth
4mm
Gender
Receptacle
Height
3.2mm
Housing Color
Beige
Lead Free
Lead Free
Length
6.65mm
Material
Polyamide
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
150V
Mount
Free Hanging, Cable
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
1.25mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF13
Termination
Crimp
Voltage Rating
150V
Width
3.2mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF13-4S-1.25C Datasheet
Download the complete datasheet for Hirose DF13-4S-1.25C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

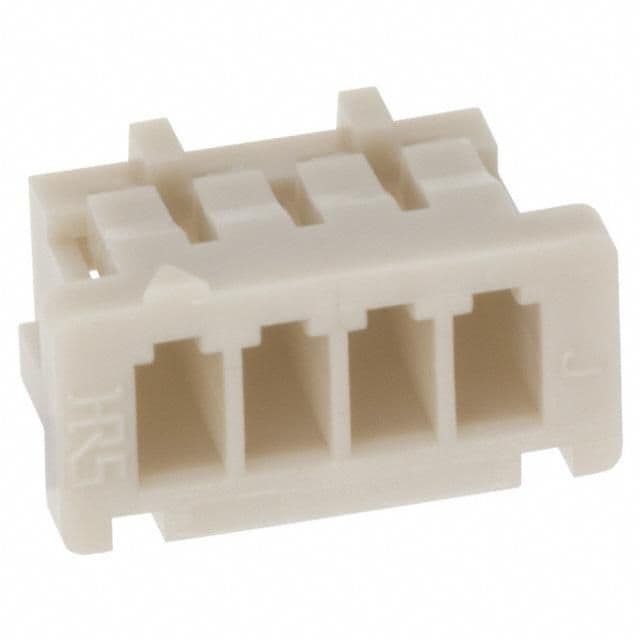

Product Images
