7-position, 1.25mm pitch wire housing for crimp termination. Features a straight, cable mount orientation with a female contact gender. Constructed from beige polyamide with a copper contact material, this connector offers a 1A current rating and 150V voltage rating. Operating temperature range is -35°C to 85°C, with a UL94 V-0 flammability rating.
Voltage Rating150V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF13-7S-1.25C technical specifications.
General
Color
Beige
Contact Gender
Female
Contact Material
Copper
Contact Type
Female Socket
Current Rating
1A
Depth
4mm
Flammability Rating
UL94 V-0
Gender
Female
Height
3.2mm
Housing Color
Beige
Lead Free
Lead Free
Length
10.4mm
Material
Polyamide
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
150V
Mount
Free Hanging, Cable
Number of Contacts
7
Number of Positions
7
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
1.25mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF13
Termination
Crimp
Voltage Rating
150V
Voltage Rating (AC)
150V
Width
3.2mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF13-7S-1.25C Datasheet
Download the complete datasheet for Hirose DF13-7S-1.25C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

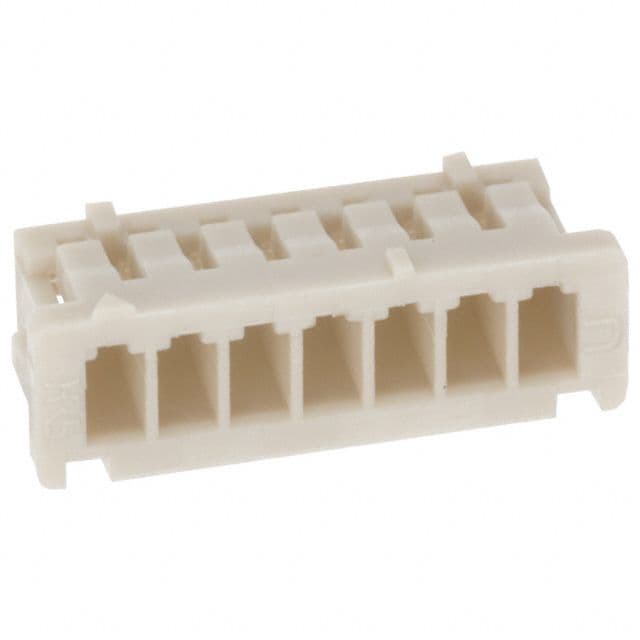

Product Images
