2-position, 1-row straight receptacle wire housing with a 1.25mm pitch, designed for crimp termination. Features female socket contacts, a 1A current rating, and a 150V AC voltage rating. Constructed from beige Nylon insulation material, this housing has a flammability rating of UL94 V-0 and operates within a temperature range of -35°C to 85°C. Mounts as free-hanging and is RoHS compliant.
Current Rating1A
MountingFree Hanging
Quick Jump:
Technical Specifications
Hirose DF14-2S-1.25C technical specifications.
General
Color
Beige
Contact Gender
Female
Contact Type
Female Socket
Current Rating
1A
Depth
5.8mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
2.3mm
Housing Color
Beige
Insulation Material
Nylon
Lead Free
Lead Free
Lead Pitch
1.25mm
Length
4.45mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
150V
Mount
Free Hanging
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
1.25mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF14
Termination
Crimp
Voltage Rating (AC)
150V
Width
2.3mm
Compliance
RoHS
Compliant
Datasheet
Hirose DF14-2S-1.25C Datasheet
Download the complete datasheet for Hirose DF14-2S-1.25C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

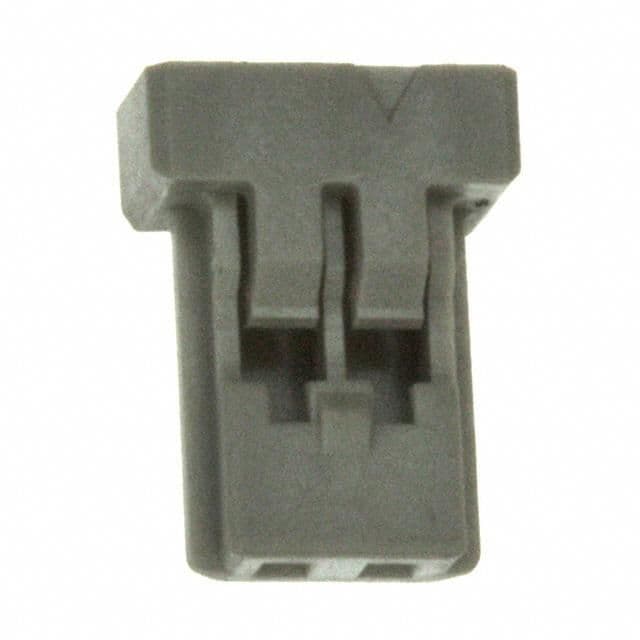

Product Images
