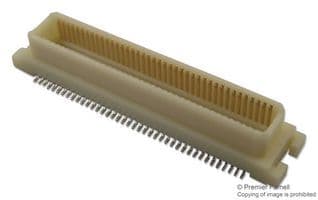

50-position, 2-row male board-to-board header with a 0.5mm pitch, designed for surface mount (SMD/SMT) termination. Features copper contacts with gold plating, a 300mA current rating, and a 50V voltage rating. Offers a mated stacking height of 8mm and a stack height of 4mm. Operates within a temperature range of -35°C to 85°C and boasts a UL94 V-0 flammability rating. Packaged in tape and reel for automated assembly.
Voltage Rating50V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF17A(4.0)-50DP-0.5V(57) technical specifications.
General
Contact Material
Copper
Contact Plating
Gold
Current Rating
300mA
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
White
Lead Free
Lead Free
Mated Stacking Heights
8mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Mount
Surface Mount
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Package Quantity
1000
Packaging
Tape and Reel
Pitch
0.5mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF17
Stack Height
4mm
Termination
SMD/SMT
Voltage Rating
50V
Compliance
RoHS
Compliant
Datasheet
Hirose DF17A(4.0)-50DP-0.5V(57) Datasheet
Download the complete datasheet for Hirose DF17A(4.0)-50DP-0.5V(57) to view detailed technical specifications.
