8-position, 1-row wire housing with a 2.5mm pitch, designed for straight, cable mount applications. Features female socket contacts and a straight orientation, supporting a 3A current rating and 250V AC voltage rating. Operating temperature range spans from -35°C to 85°C. This lead-free, RoHS compliant component is white in color and mounts free-hanging.
Current Rating3A
MountingFree Hanging
Quick Jump:
Technical Specifications
Hirose DF1B-8S-2.5R technical specifications.
General
Color
White
Contact Gender
Female
Contact Type
Female Socket
Current Rating
3A
Depth
11.5mm
Gender
Male
Height
4.4mm
Housing Color
White
Lead Free
Lead Free
Length
20mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging
Number of Contacts
8
Number of Positions
8
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2.5mm
RoHS Compliant
Yes
Series
DF1B
Termination
Crimp
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Hirose DF1B-8S-2.5R Datasheet
Download the complete datasheet for Hirose DF1B-8S-2.5R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

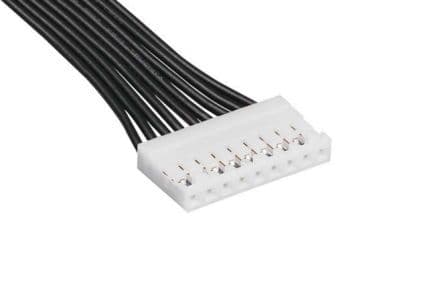

Product Images
