Shrouded header connector with 4 positions and a 2.5mm pitch. Features male pin contacts made of brass with gold and tin plating for mating. Rated for 3A current and 250V AC voltage, with a right-angle, through-hole mounting orientation. Insulation material is white nylon, with a flammability rating of UL94 V-0. Operating temperature range is -35°C to 85°C.
Voltage Rating150V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF1BZ-4P-2.5DS technical specifications.
General
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
12.5mm
Flammability Rating
UL94 V-0
Gender
Male
Height
5.7mm
Housing Color
White
Insulation Color
White
Insulation Material
Nylon
Lead Free
Lead Free
Length
12.5mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
2.5mm
RoHS Compliant
Yes
Series
DF1B
Termination
Solder
Voltage Rating
150V
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Hirose DF1BZ-4P-2.5DS Datasheet
Download the complete datasheet for Hirose DF1BZ-4P-2.5DS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

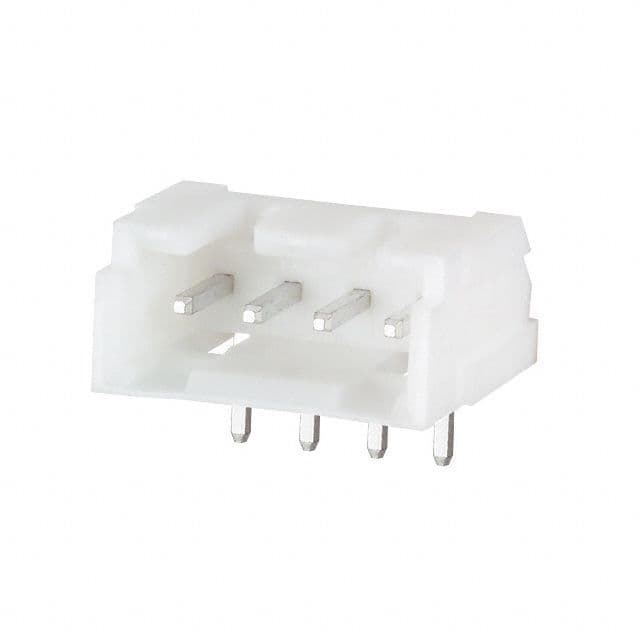

Product Images
