3-position, 1-row wire-to-board header with a 7.92mm pitch. Features straight, top-entry, thru-hole mounting with solder termination. Constructed with a red housing and copper alloy male pin contacts plated in tin-lead. Rated for 1kV AC/DC, operating between -35°C and 85°C. RoHS compliant.
Voltage Rating1kV
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF22L-3P-7.92DSA(05) technical specifications.
General
Color
Red
Contact Material
Copper Alloy
Contact Mating Length
0.354inch
Contact Plating
Tin, Lead
Contact Type
Male Pin
Depth
12.45mm
Gender
Male
Housing Color
Red
Lead Free
Lead Free
Length
25.14mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
1kV
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
7.92mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
DF22
Termination
Solder
Voltage Rating
1kV
DC Rated Voltage
1kV
Compliance
RoHS
Compliant
Datasheet
Hirose DF22L-3P-7.92DSA(05) Datasheet
Download the complete datasheet for Hirose DF22L-3P-7.92DSA(05) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

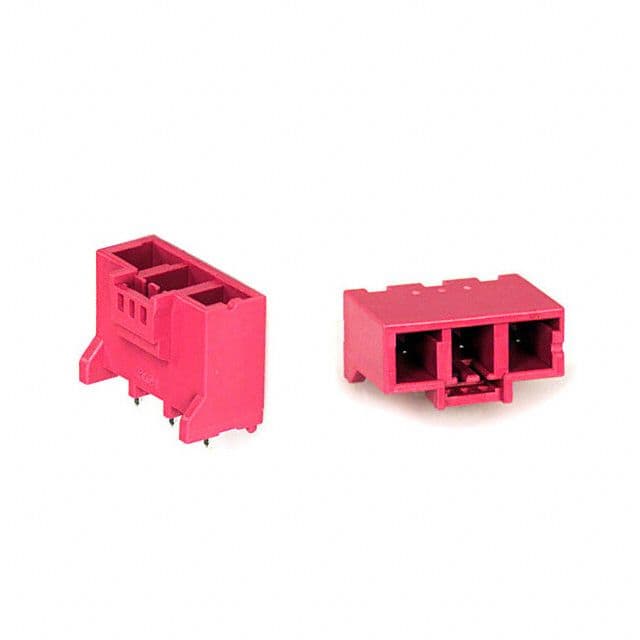

Product Images
