10-position, 2-row male header for board-to-board applications. Features a 0.5mm pitch and straight, surface-mount termination. Contacts are gold-plated bronze and copper alloy, rated for 300mA and 50V AC/DC. Operates within a -35°C to 85°C temperature range. Housing is black, and the component is RoHS compliant.
Voltage Rating50V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF23C-10DP-0.5V(92) technical specifications.
General
Contact Gender
Male
Contact Material
Bronze, Copper Alloy
Contact Plating
Gold
Current Rating
300mA
Depth
3.1mm
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
4mm
Mated Stacking Heights
1.5mm
Max Current Rating
300mA
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
50V
Mount
Surface Mount
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Straight
Package Quantity
2000
Packaging
Tape and Reel
Pitch
0.5mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
4.3mm
Series
DF23
Termination
SMD/SMT
Voltage Rating
50V
Compliance
RoHS
Compliant
Datasheet
Hirose DF23C-10DP-0.5V(92) Datasheet
Download the complete datasheet for Hirose DF23C-10DP-0.5V(92) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

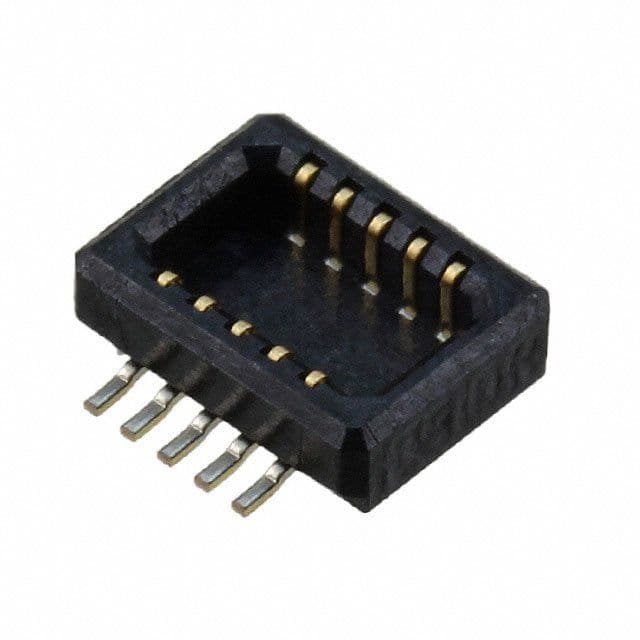

Product Images
