40-position, 2-row male board-to-board connector with a 0.5mm contact pitch. Features gold-plated bronze/copper alloy contacts, a 300mA current rating, and a 50V AC voltage rating. Designed for straight, surface mount (SMD/SMT) termination with a mated stacking height of 1.5mm. Operates within a temperature range of -35°C to 85°C and boasts a UL94 V-0 flammability rating. Packaged in tape and reel for automated assembly.
Voltage Rating50V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF23C-40DP-0.5V(92) technical specifications.
General
Contact Gender
Male
Contact Material
Bronze, Copper Alloy
Contact Pitch
500um
Contact Plating
Gold
Contact Voltage Rating (AC)
50V
Current Rating
300mA
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Mated Stacking Heights
1.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Mount
Surface Mount
Number of Contacts
40
Number of Positions
40
Number of Rows
2
Orientation
Straight
Package Quantity
2000
Packaging
Tape and Reel
Pitch
0.5mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
4.3mm
Series
DF23
Termination
SMD/SMT
Voltage Rating
50V
Compliance
RoHS
Compliant
Datasheet
Hirose DF23C-40DP-0.5V(92) Datasheet
Download the complete datasheet for Hirose DF23C-40DP-0.5V(92) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

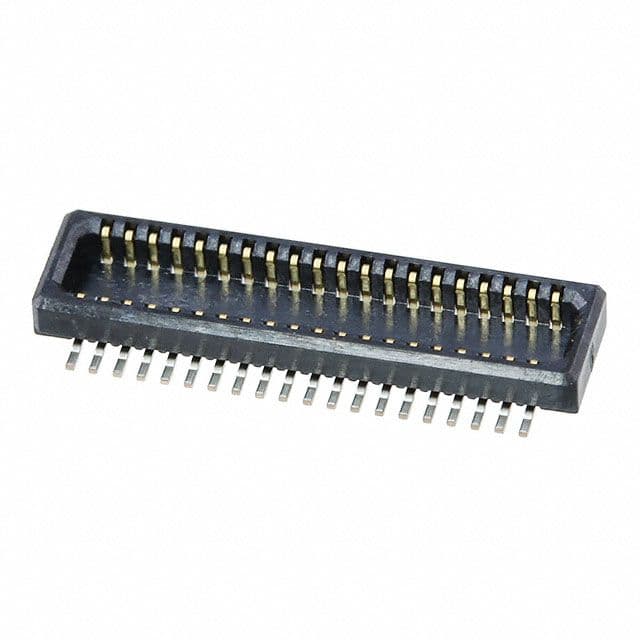

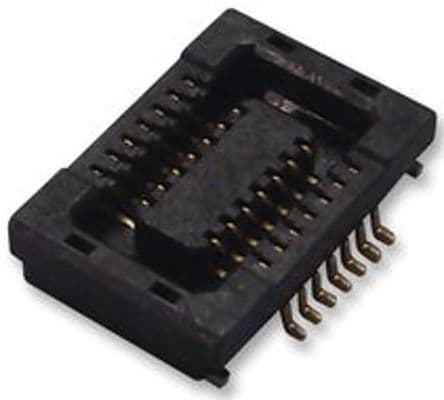

Product Images
