13-position, 2mm pitch straight female socket wire housing for crimp termination. Features tin and gold contact plating, a 3A current rating, and a 100V voltage rating. Operating temperature range is -30°C to 85°C. Black housing, lead-free, and RoHS compliant. Designed for free hanging or cable mounting.
Voltage Rating100V
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF3-13S-2C technical specifications.
General
Color
Black
Contact Plating
Tin, Gold
Contact Type
Female Socket
Current Rating
3A
Depth
6.8mm
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
28mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
100V
Mount
Free Hanging, Cable
Number of Contacts
13
Number of Positions
13
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
DF3
Termination
Crimp
Voltage Rating
100V
Width
4.6mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
22AWG
Compliance
RoHS
Compliant
Datasheet
Hirose DF3-13S-2C Datasheet
Download the complete datasheet for Hirose DF3-13S-2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

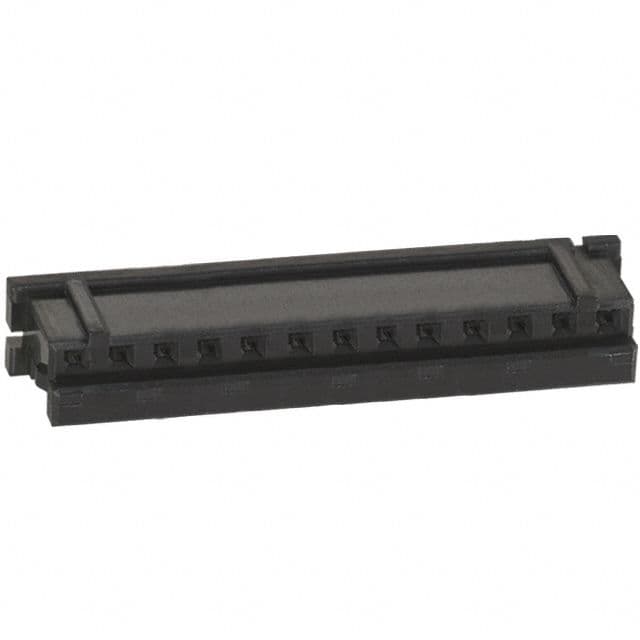

Product Images
