14-position, 1-row straight wire housing for 2mm pitch crimp termination. Features female socket contacts with tin and gold plating, rated for 3A current and 250V voltage. This black, lead-free, and RoHS compliant housing offers free-hanging or cable mounting with a compact 30mm length, 4.6mm height, 4.6mm width, and 6.8mm depth.
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF3-14S-2C technical specifications.
General
Color
Black
Contact Gender
Female
Contact Plating
Tin, Gold
Contact Type
Female Socket
Current Rating
3A
Depth
6.8mm
Gender
Female
Height
4.6mm
Housing Color
Black
Lead Free
Lead Free
Length
30mm
Mount
Free Hanging, Cable
Number of Contacts
14
Number of Positions
14
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
DF3
Termination
Crimp
Voltage Rating
250V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Hirose DF3-14S-2C Datasheet
Download the complete datasheet for Hirose DF3-14S-2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

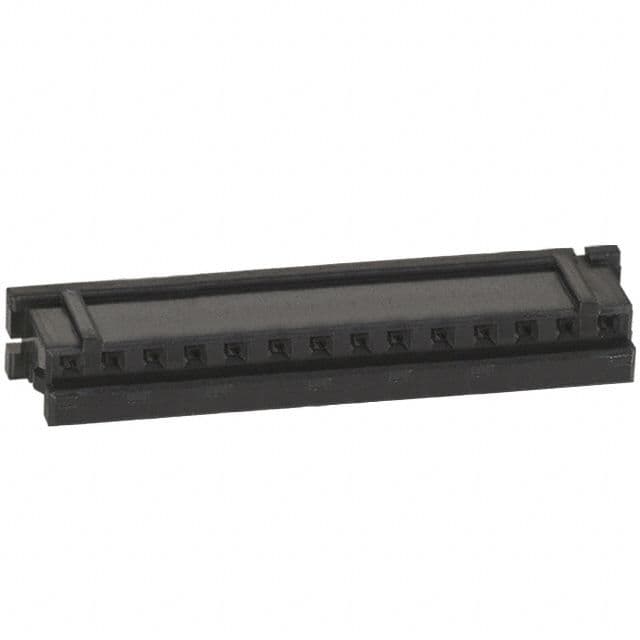

Product Images
