15-position, 2mm pitch wire housing connector with straight, female socket contacts. Features tin and gold contact plating, a 3A current rating, and 250V voltage rating. This black, lead-free, RoHS-compliant component offers a straight orientation and crimp termination. Designed for free hanging or cable mounting, it measures 32mm in length, 4.6mm in height, and 6.8mm in depth.
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF3-15S-2C technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Plating | Tin, Gold |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 6.8mm |
| Gender | Female |
| Height | 4.6mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 32mm |
| Mount | Free Hanging, Cable |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DF3 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Hirose DF3-15S-2C Datasheet
Download the complete datasheet for Hirose DF3-15S-2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

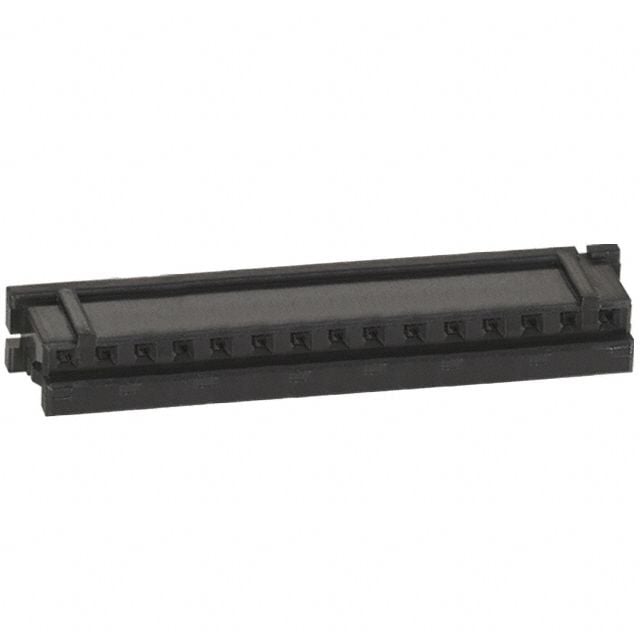

Product Images
