2-position shrouded header with a 2mm contact pitch, featuring male pin contacts made of brass with gold plating for mating. This straight, through-hole mount component offers a 3A current rating and a 100V AC voltage rating, with a UL94 V-0 flammability rating. The black nylon housing and insulation ensure durability, operating within a temperature range of -55°C to 105°C.
Voltage Rating100V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF3-2P-2DSA(01) technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Pitch | 2mm |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Contact Voltage Rating (AC) | 250V |
| Current Rating | 3A |
| Depth | 5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 5mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 100V |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DF3 |
| Termination | Solder |
| Voltage Rating | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Hirose DF3-2P-2DSA(01) Datasheet
Download the complete datasheet for Hirose DF3-2P-2DSA(01) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

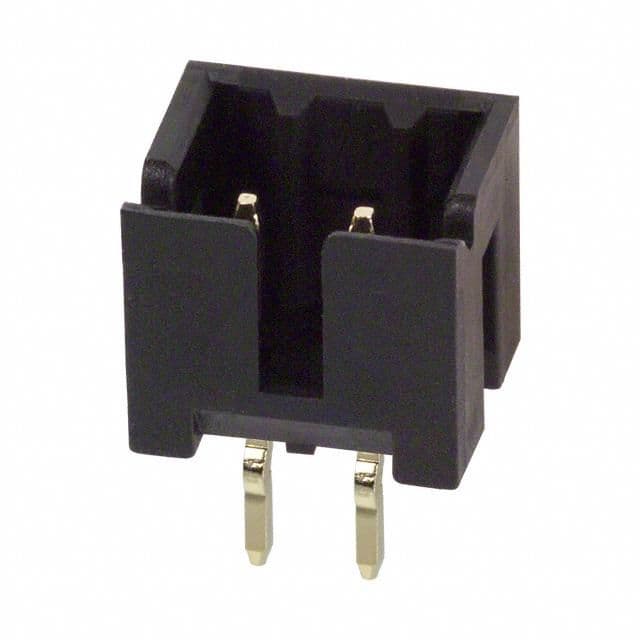

Product Images
