4-position, 1-row shrouded header with 2mm pitch for board-to-board applications. Features male pin contacts with gold plating over brass and copper alloy for mating. Rated for 3A current and 100V AC, with a straight, through-hole mounting orientation. Constructed with a black nylon housing and insulation, offering a temperature range of -55°C to 105°C and UL94 V-0 flammability rating.
Voltage Rating100V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF3-4P-2DSA(01) technical specifications.
General
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass, Copper Alloy
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5mm
Flammability Rating
UL94 V-0
Gender
Male
Height
5mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Length
10mm
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
100V
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
2mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF3
Termination
Solder
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Hirose DF3-4P-2DSA(01) Datasheet
Download the complete datasheet for Hirose DF3-4P-2DSA(01) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

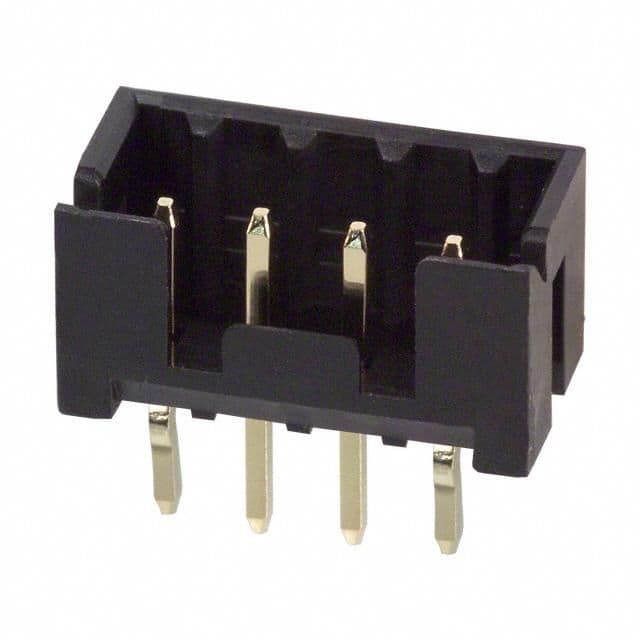

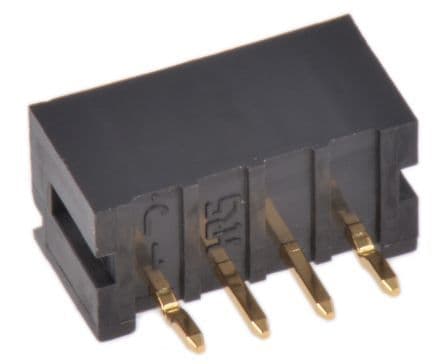

Product Images
