Voltage Rating500V
Current Rating5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose DF33-3S-3.3C technical specifications.
General
Color
Natural
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Type
Female Socket
Current Rating
5A
Depth
14mm
Gender
Female
Length
11.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Mount
Free Hanging, Cable
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
3.3mm
RoHS Compliant
Yes
Series
DF33
Termination
Crimp
Voltage Rating
500V
Width
7.4mm
Compliance
RoHS
Compliant
Datasheet
Hirose DF33-3S-3.3C Datasheet
Download the complete datasheet for Hirose DF33-3S-3.3C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

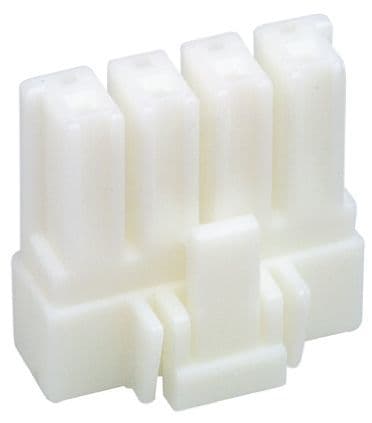

Product Images
