2-position, 1-row shrouded header with straight, top-entry, through-hole mounting. Features 2mm pitch, tin-plated brass/copper alloy male pin contacts, and a nylon housing. Rated for 3A current and 250V voltage, with an operating temperature range of -55°C to 105°C. UL94 V-0 flammability rating and RoHS compliant.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF3A-2P-2DSA technical specifications.
General
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass, Copper Alloy
Contact Plating
Tin
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Length
6mm
Mated Stacking Heights
5mm
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
100V
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF3
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Hirose DF3A-2P-2DSA Datasheet
Download the complete datasheet for Hirose DF3A-2P-2DSA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

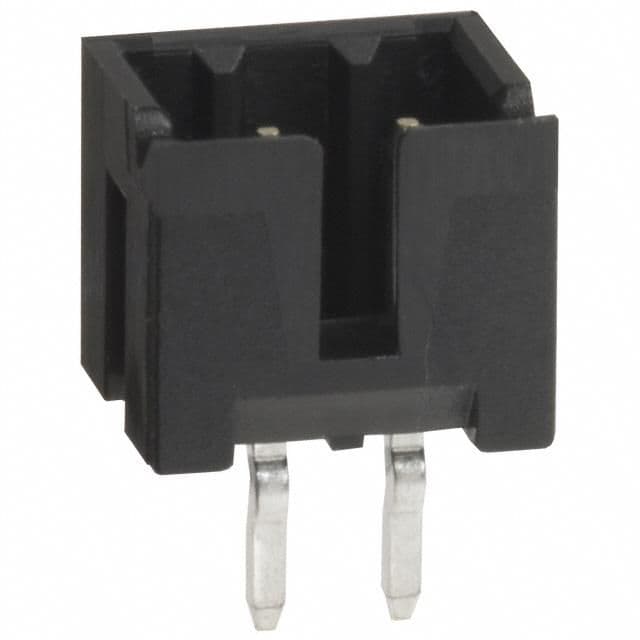

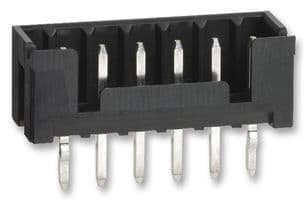

Product Images
