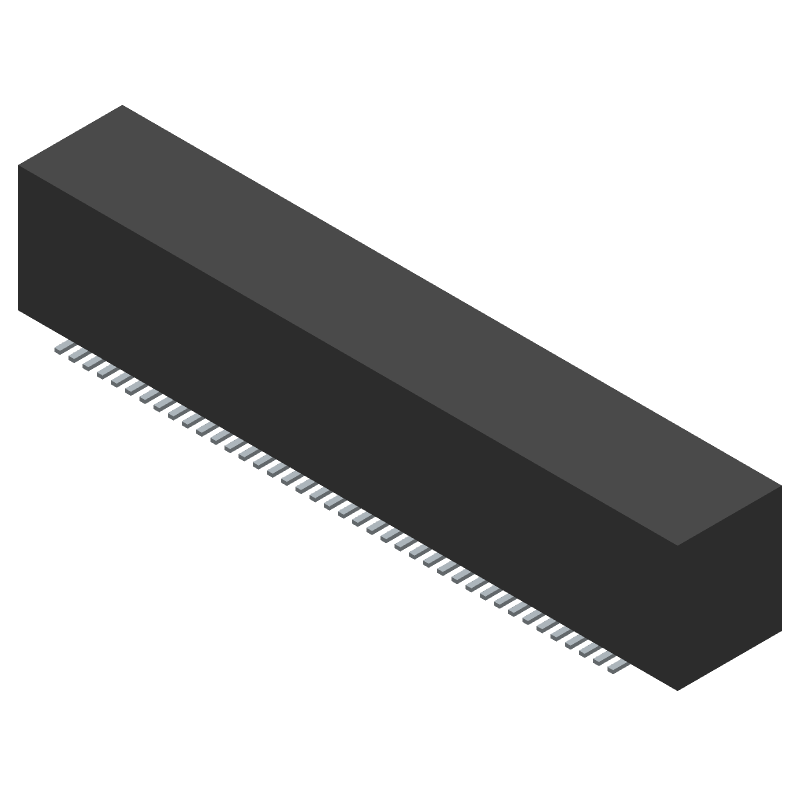

80-position, 2-row shrouded receptacle for board-to-board applications. Features a 0.4mm pitch and 3.5mm mated stacking height. Contact material is bronze with gold plating, supporting a 30V voltage rating and 300mA current rating. Surface mount termination with SMD/SMT mounting style, supplied on tape and reel.
Voltage Rating30V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF40HC(3.5)-80DS-0.4V(51) technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
300mA
Gender
Receptacle
Mated Stacking Heights
3.5mm
Mount
Surface Mount
Number of Contacts
80
Number of Positions
80
Number of Rows
2
Package Quantity
2000
Packaging
Tape and Reel
Pitch
0.4mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF40
Stack Height
3.5mm
Termination
SMD/SMT
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Hirose DF40HC(3.5)-80DS-0.4V(51) Datasheet
Download the complete datasheet for Hirose DF40HC(3.5)-80DS-0.4V(51) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
