60-position, 2-row shrouded board-to-board receptacle with a 0.4mm pitch. Features gold-plated bronze contacts, a 30V voltage rating, and a 300mA current rating. Designed for surface mount (SMD/SMT) termination with a mated stacking height of 4mm. Operates within a temperature range of -35°C to 85°C and is RoHS compliant. Packaged in tape and reel for automated assembly.
Voltage Rating30V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF40HC(4.0)-60DS-0.4V(51) technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
300mA
Gender
Receptacle
Lead Free
Lead Free
Mated Stacking Heights
4mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Mount
Surface Mount
Number of Contacts
60
Number of Positions
60
Number of Rows
2
Package Quantity
2000
Packaging
Tape and Reel
Pitch
0.4mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF40
Stack Height
4mm
Termination
SMD/SMT
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Hirose DF40HC(4.0)-60DS-0.4V(51) Datasheet
Download the complete datasheet for Hirose DF40HC(4.0)-60DS-0.4V(51) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

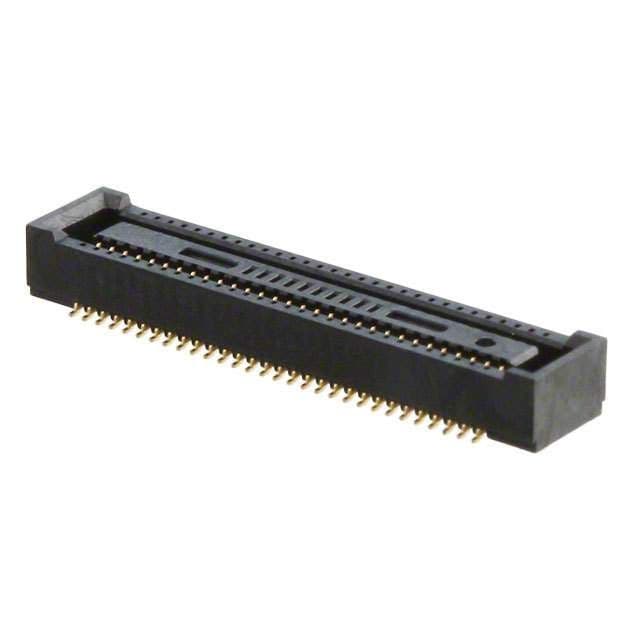

Product Images
