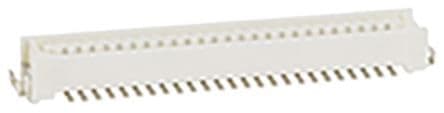

51-position, 2-row shrouded header for board-to-board applications. Features 1mm pitch and straight, surface-mount termination with gold-plated copper alloy contacts. Rated for 150V and 500mA, with a mated stacking height of 4.3mm and a row spacing of 5.6mm. Housing is beige, UL94 V-0 flammability rated, and lead-free. Packaged in tape and reel.
Voltage Rating150V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF9-51P-1V(69) technical specifications.
General
Contact Material
Copper, Bronze, Copper Alloy
Contact Plating
Gold
Current Rating
500mA
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Beige
Lead Free
Lead Free
Mated Stacking Heights
4.3mm
Mount
Surface Mount
Number of Contacts
51
Number of Positions
51
Number of Rows
2
Orientation
Straight
Package Quantity
1000
Packaging
Tape and Reel
Pitch
1mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
5.6mm
Series
DF9
Termination
SMD/SMT
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
Hirose DF9-51P-1V(69) Datasheet
Download the complete datasheet for Hirose DF9-51P-1V(69) to view detailed technical specifications.
