Right-angle FFC connector with 10 positions and 0.5mm pitch. Features top contact location, gold-plated bronze contacts, and a polyphenylene actuator. Rated for 50V AC, 500mA current, and 20 mating cycles. Operates from -40°C to 85°C, with a UL94 V-0 flammability rating. Surface mount termination with lead-free and RoHS compliance.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose FH12A-10S-0.5SH(55) technical specifications.
General
Actuator Color
Brown
Actuator Material
Polyphenylene
Contact Location
Top
Contact Material
Bronze
Contact Plating
Gold
Current Rating
500mA
Depth
6.2mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Beige
Lead Free
Lead Free
Length
9.5mm
Mating Cycles
20
Max Current Rating
400mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
50V
Mount
Surface Mount
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Orientation
Right Angle
Package Quantity
2000
Packaging
Tape and Reel
Pitch
0.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
FH12
Termination
Solder
Voltage Rating
50V
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Hirose FH12A-10S-0.5SH(55) Datasheet
Download the complete datasheet for Hirose FH12A-10S-0.5SH(55) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

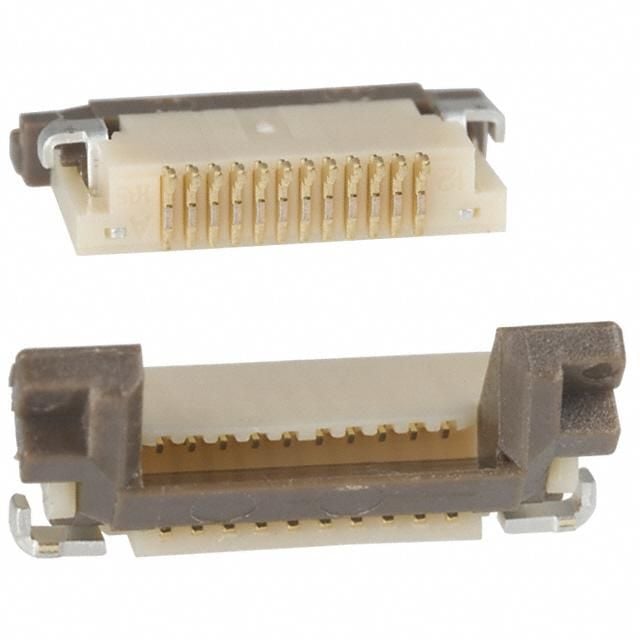

Product Images
