24-position, 1-row female right-angle card edge connector with a 0.5mm pitch. Features gold-plated bronze contacts, a surface mount termination, and a beige polyamide housing. Rated for 50V AC and 500mA current, with a mating cycle of 20. Operating temperature range is -40°C to 70°C. Includes a locking mechanism and is RoHS compliant.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose FH12A-24S-0.5SH(55) technical specifications.
General
| Actuator Color | Brown |
| Actuator Material | Polyphenylene |
| Color | Beige, Brown |
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 6.2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Beige |
| Lead Free | Lead Free |
| Lead Pitch | 0.5mm |
| Length | 16.5mm |
| Material | Polyamide |
| Mating Cycles | 20 |
| Max Current Rating | 400mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FH12 |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| Width | 16.1mm |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Hirose FH12A-24S-0.5SH(55) Datasheet
Download the complete datasheet for Hirose FH12A-24S-0.5SH(55) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

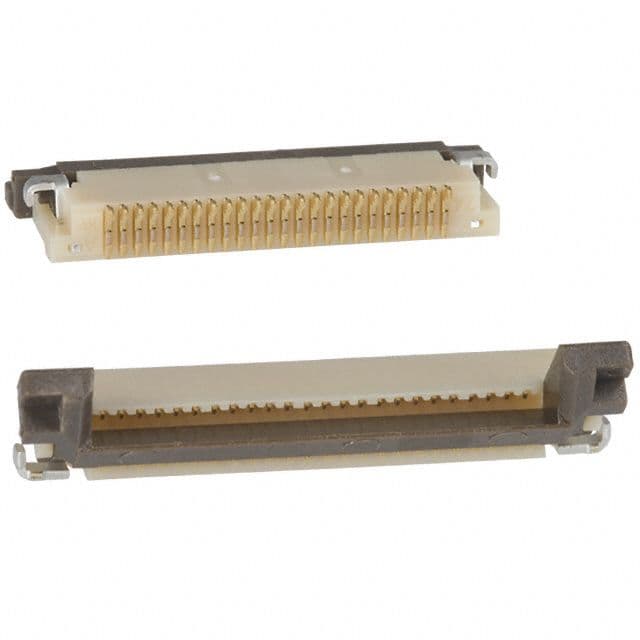

Product Images
