60-position, 2-row board-to-board receptacle connector with a 0.4mm pitch. Features straight, surface mount termination with gold-plated bronze contacts. Offers a 300mA current rating and 30V voltage rating, operating from -55°C to 85°C. Designed for a 1.5mm mated stacking height and 30 mating cycles, with UL94 V-0 flammability. Packaged in tape and reel for automated assembly.
Voltage Rating30V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose FX12B-60S-0.4SV technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
300mA
Flammability Rating
UL94 V-0
Gender
Receptacle
Lead Free
Lead Free
Lead Pitch
0.4mm
Mated Stacking Heights
1.5mm
Mating Cycles
30
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
60
Number of Positions
60
Number of Rows
2
Orientation
Straight
Package Quantity
3000
Packaging
Tape and Reel
Pitch
0.4mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FX12
Stack Height
1.5mm
Termination
Solder
Voltage Rating
30V
Voltage Rating (AC)
30V
Compliance
RoHS
Compliant
Datasheet
Hirose FX12B-60S-0.4SV Datasheet
Download the complete datasheet for Hirose FX12B-60S-0.4SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

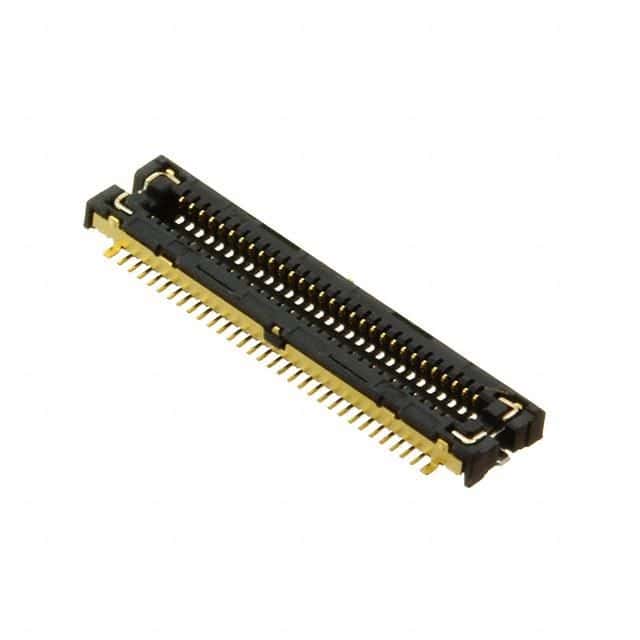

Product Images
