80-position, 2-row male header for board-to-board applications. Features a 0.8mm pitch and gold-plated bronze contacts. Designed for surface mount termination with a 100V voltage rating and operating temperature range of -55°C to 80°C. Mated stacking height is 20mm. Supplied in tray packaging.
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose FX18-80P-0.8SV technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Gender
Male
Mated Stacking Heights
20mm
Max Operating Temperature
80°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
80
Number of Positions
80
Number of Rows
2
Packaging
Tray
Pitch
0.8mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
FunctionMax™ FX18
Termination
Through Hole
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Hirose FX18-80P-0.8SV Datasheet
Download the complete datasheet for Hirose FX18-80P-0.8SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

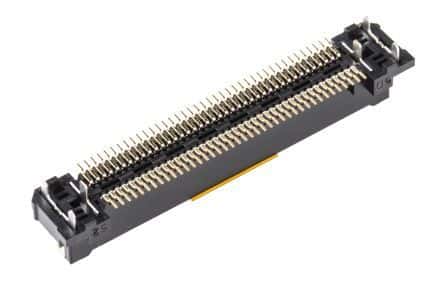

Product Images
