Right-angle, surface-mount RJ11 connector featuring 16 positions and 1 port. This female connector utilizes copper alloy contacts with gold plating for reliable connectivity. It offers a 500mA current rating and a 50V AC voltage rating, with a 0.5mm pitch. Constructed with a black nylon housing and insulation, it operates within a -40°C to 70°C temperature range and meets UL94 V-0 flammability standards.
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose LX60-16S technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Center Strip Contact |
| Current Rating | 500mA |
| Depth | 6.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 12.6mm |
| Max Current Rating | 500mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Contacts | 16 |
| Number of Ports | 1 |
| Number of Positions | 16 |
| Number of Positions Loaded | 16 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LX |
| Termination | Solder |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Hirose LX60-16S Datasheet
Download the complete datasheet for Hirose LX60-16S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

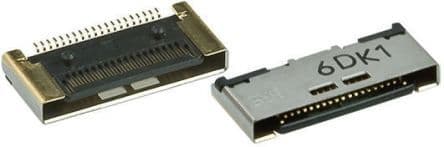

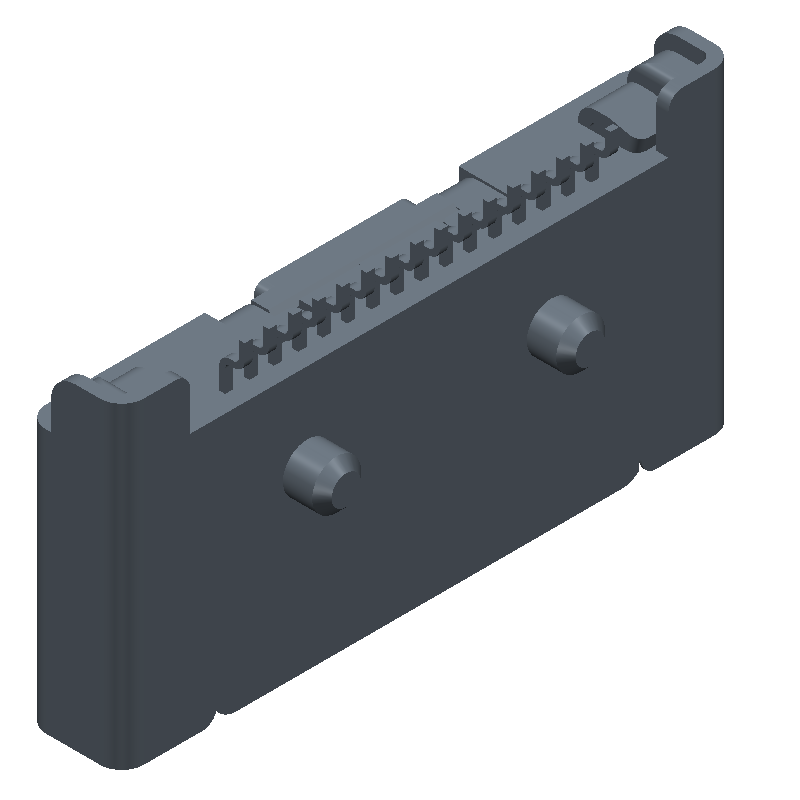

Product Images
