Subminiature coaxial switch for RF and coaxial applications, featuring a 50 Ohm impedance and operating frequency range of 0 to 11 GHz. This surface mount device offers gold-plated bronze body and copper alloy contacts for reliable signal transmission. Designed for solder termination, it supports up to 100 mating cycles and is supplied on tape and reel packaging. With a maximum operating temperature of 85°C and RoHS compliance, this component ensures robust performance in demanding environments.
Frequency11GHz
PackageSMD/SMT
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Hirose MS-156C technical specifications.
General
Body Material
Bronze
Body Plating
Gold
Package/Case
SMD/SMT
Center Contact Plating
Gold
Contact Material
Copper, Copper Alloy
Contact Plating
Gold
Dielectric Material
Nylon
Housing Color
Gold
Impedance
50R
Insertion Loss
0.4dB
Lead Free
Lead Free
Mating Cycles
100
Max Frequency
11GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Ports
1
Operating Frequency
0 to 11 GHz
Orientation
Vertical
Package Quantity
10000
Packaging
Tape and Reel
Plating
Gold
Polarity
Standard
Radiation Hardening
No
RoHS Compliant
Yes
Series
MS-156C
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Hirose MS-156C Datasheet
Download the complete datasheet for Hirose MS-156C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

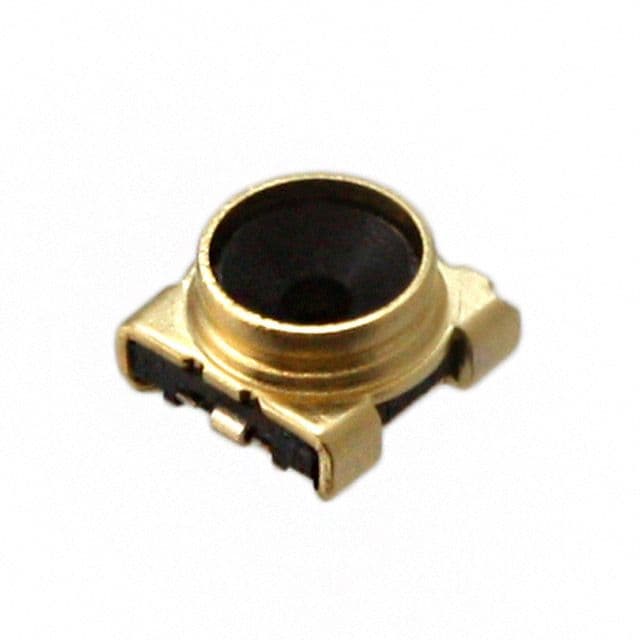

Product Images
